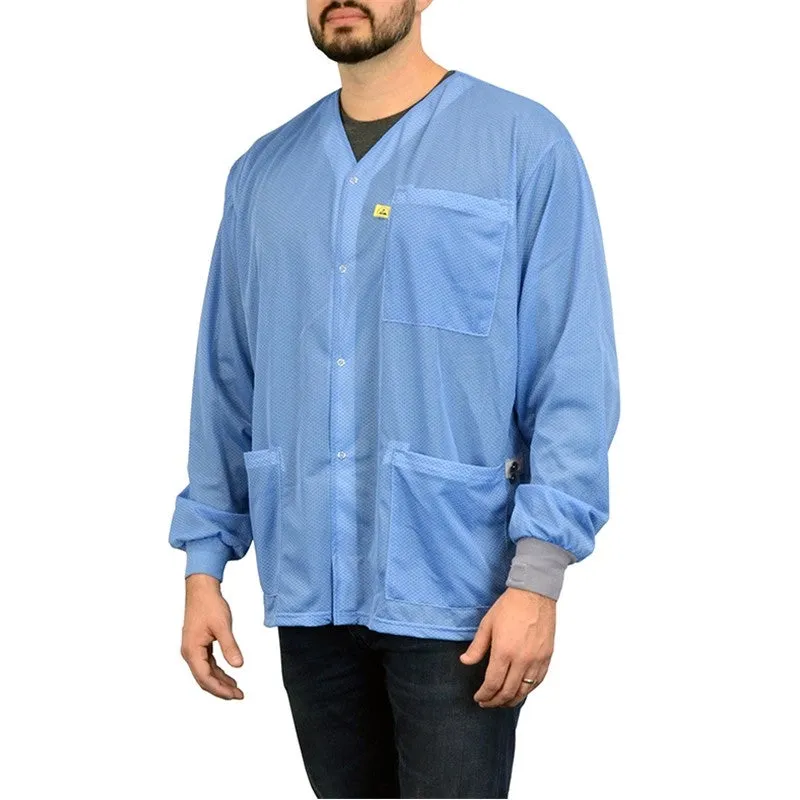

The SCS 770102 Dual-Wire Smock, is a Blue Jacket with Knitted Cuffs, Three Pockets and No Collar, Size Medium

Description: The SCS Dual-Wire Static Control Smock is designed for use with dual-wire grounding systems. One conductive cuff is electrically bonded to the dissipative garment and one snap stud at the hip. The second conductive cuff uses an isolated conductive path to bond to a second snap stud at the hip. The smock’s dual-wire circuit loop closes when its two conductive cuffs are bridged by the skin on the wearer’s wrists.

Features of the SCS 770102 Dual-Wire Smock:

• Groundable Static Control Garment System Meets ANSI/ESD S20.20 (Rtg < 3.5 X 107 ohms) Requirement Tested Per ANSI/ESD STM2.1 and ESD TR53
  Allows operators and smock to be bonded or electrically connected to remove electrostatic charges to ground to limit ESD events in ESD Protected Areas


• Compatible with the SCS 724 Workstation Monitor and Other Dual-Wire Continuous Monitors
  Pairs with the SCS 770110 and 770111 MagSnap® Dual-Wire Coil Cords (sold separately)


• Minimum of 9% Carbon Conductive Nylon Fibers Woven in Chain-Link Design
  Provides continuous and consistent charge dissipation throughout lifetime of smock


• Creates Faraday Cage Effect Around Torso and Arms of Operator
  Shields ESD charges on operators' clothing from damaging ESD sensitive items


• Panel-To-Panel Conductivity
  Prevents isolated charged conductor in ESD Protected Area


• Hip-To-Cuff Grounding
  Improves productivity, grounds operator with no need for a cord to be attached to the operator's wrist.


• Jacket Length with “Set-In” Style Sleeves, Reinforced Hem V-Neck and Stainless-Steel Snaps
  Provides durable, tailored quality


• Tag-Free Neck Label
  Sizing and laundering information sublimated on the inside of the back collar


• 3 Pockets
  1 chest pocket and 2 hip pockets


• Made in the United States of America
